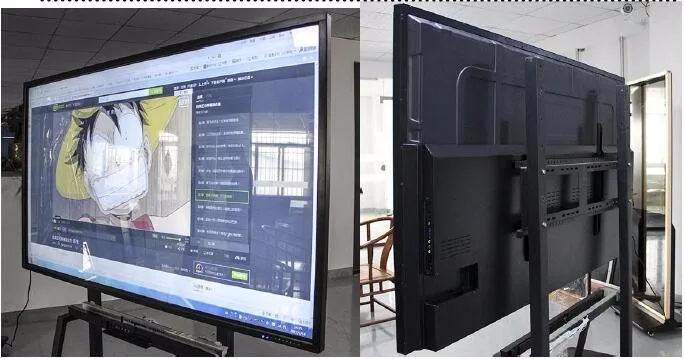

Wall 85" 86" inch LED TFT LCD touchscreen monitor with Android and Windows X86 PC E-board interactive whiteboard

FOB Reference Price:Get Latest Price
$2,000.00 - $2,200.00 / Unit | 1 Unit/Units (Min. Order)
Panel Size:
Max Resolution:
3840 x 2400
16.7M size: 85 inch 86 inch
Support Sea freight
Lead Time:
Quantity(Units) 1 - 100 >100
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
shine star/oem
Model Number:
Viewing Angle:
L89 R89 U89 D89
Pixel Pitch:
0.264mm (H)
Contrast Ratio:
Response Time:
Input Voltage:
More than 5 Years
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
metal shape+Tempered glass surface:
can be customized
touch screen:
IR or capacitive touchscreen 10-points
Full HD 4K 3840P:
support real 4K resolution output
network function:
wired LAN,wireless WIFI, 4G
Optional Function:
camera, microphone as options
55, 65, 75, 85, 86 inch as options
Android,CE,Windows, Linux as option
vertical and horizontal are OK:
Support both of landscape and portrait
Supply Ability
Supply Ability:
10009 Unit/Units per Month Wall 85" 86" inch LED TFT LCD touchscreen monitor with Android a
Packaging & Delivery
Packaging Details
(bubble bag+soft pearl wool wrap) carton+plywood box
Wall 85" 86" inch LED TFT LCD touchscreen monitor with Android and Windows X86 PC E-board interactive whiteboard
China any port, shenzhen, hongkong, guangzhou
Lead Time :
Quantity(Units) 1 - 100 >100
Est. Time(days) 7 To be negotiated
Video Description
Product Description

Wall 85" 86" inch LED TFT LCD touchscreen monitor with Android and Windows X86 PC E-board interactive whiteboard

Support both of Landscape and portrait mode.
Display Panel Details
display panel brand
LG,Samsung,AUO,Chimei,etc... original brand new & grade A+
7 inch to 86 inch
Customize Frame Color
Black, white, silvery, golden as options
body material
Durable aluminum frame & tempered glass to protect LCD panel against external impacts
PC configuration
X86 Intel ® i3 / i5 / i7 + ANdroid 6.0 up OS......
DDR III / 1333 / 4G-8G-16G
SSD 80GB -- 1TB - 2TB
H61, H81, 82NM70 , Android Chipset AS OPTIONS
Windows 7/10/XP/Linux/others
150Mbps-1000Mbps 802.11b/n/g Wifi Integated
Intel ®GMA HD4000, Intel HD Graphics 510/610 support 4K/1080P/H264/3D Play etc...
HD 8-channel (7.1) audio subsystem, Realtek ALC662 HD Audio, support Line-in,Line-out,Mic-in,Spdif,Speaker
Touch Screen       (Multi-Points)
Detection Method
Infrared touch,Multi-points, 10 points
Position accuracy
Approximately 3 mm absolute, 1 mm relative. No drift
Software drivers provide a calibration facility
Can be programmed for different thickness of glass and even use with gloved hands.
Standard configuration functions with non-metalized.
single construction glass 16mm thick. Double glazing option up to 25mm available
Speed of response
Depends upon material thickness. Typically 50 to 100ms
USB 3.0
Software Compatibility
Drivers are available for Windows Operating Systems
Temperature range
Better than -20 to +70°C
Humidity Controller
0% to 95%. Unaffected by condensation
Metal Case
Steel/metal & Tempered glass
Metal case with powder burning; tempered glass to protect LCD panel
2*5W; 2*10W built-in stereo speakers as options;
Heat Dispersion
Built-in DC fan;
Network I/O
Reset Button
External reset button for ease of operation;
Mini Printer or A4 laser printer, Camera, Coin acceptor, Biology fingerprint recognizer, IC/ID card reader, Standard US Keyboard or metal explode proof, keyboard, 16bit Metal Keyboard, Infrared receiver, 2/3 track Magnetic Card reader, Explode proof metal
Product Details

2-6mm Tempered Glass as protection surface

Metal casing for public usage

Duable and anti-vandalism

Support both of Landscape and Portrait mode

Customized logo & body colour available

OEM/ODM on functions & shapes welcome

Multi-point touch screen

Capacitive touch panel & IR touch panel are available

10-20 touch points

advertising / signage features

E-board interactive whiteboard For Classroom , Meeting, etc...

Network Management System (WIFI, 3G/4G, RJ45) for advertising signage display purpose

* Can set several assistant of administrator with limits of authority.
* Can set fixed time download, real-time download. And keep broadcasting when downloading.
* Support terminal set password, for protect viciously control from outside.
* Support modify terminal IP by server software or by remote control.
* High definition, and support 1080P video.
* Control one or all terminals.
* Support 3 roll-text.
* Support play files & roll-text in the specified time, support playlist.
* Support play video with connected photo and roll-text.
* Can be set several clocks of power on and off.
* Support cut-in broadcasting.
* Support vertical type.

Packing & Delivery

Plywood box

Plywood box

Our Service

Warranty:  12 months warranty & Life-time maintenance

Trade Terms: EX-Works, FOB, C&F, CIF, DP, DA

Payment terms : T/T Bank wire, Western Union, PayPal, L/C, MoneyGram, Cash, Trade assurance.

Shipping: By sea, by air and by international express ......


1) Q:What is the minimum order quantity?

A:  Qty: 1 unit. Different order quantity different price.

2) Q:What payment methods your company accept?

A:We accept most often payment methods,but mainly accept bank wire transfer T/T, L/C at sight, Western Union.

3) Q:How long is the warranty time for your products?

A: We warranty 1 year for all of our products and supply life-time maintenance.

During 1 year warranty period, for small part defective,we will send replacement parts for free of charge to customers,so customers can replace defective parts by new parts by themselves. We also will pay for shipping cost. For big defective problem,customers have to ship back defective units to us and we will repair or replacement for them for free of charge. Customers will pay for shipping cost from their address to China and we will pay for shipping cost from China to customers' address.

For life-time maintenance (out of 1 year warranty period),any defective parts or units,customers will pay for replacement parts and shipping cost.We will charge a bottom cost for parts.

The man-made damage and misusing damage is not under warranty.

4) Q:I haven't done business with your company before,how can i trust your company?

A:Our company is a registered golden member on Alibaba sit for more than 7 years. We have many business partners and order histories all over the world.

5) Q:what's the shipment terms and delivery time of your company?

A: It depends on order quantity, shipping address and shipping methods.

6) Q:Do you give any discount ?

A: Different order quantity different price. We will always offer customers the lowest price based on the best quality.

7) Q:I would like to ask you if it's possible to have my logo on the product.

A: Logo printing service is available.
